Dipper

Function

Viscous, non-pumpable materials like heavy liquid batters, tempura, and marinades can be applied to your product particularly well with the dipper. The products sit in between an upper and lower belt and are guided through a bath of coating media, e.g. a BBQ marinade or tempura batter. By means of an adjustable blower system, the excess coating material can be removed. That way, you get a product according to your taste.

Features

Our dipper will gently apply heavy coating materials to your products.

    Perfectly suitable for:
    BBQ products, tempura coated products, fried fish, nuggets and vegetables

    Details

    • Continuously adjustable production speed
    • Suitability for all viscous coating materials
    • The product is run through a bath of coating media; the coating media is not pumped
    • Adjustable blower system for removing excess coating material from the top and bottom of products with an integrated material return system
    • Intuitive operation through a touch panel
    • Made entirely of stainless steel and food-approved plastic
    • High operating safety
    • Easy-to-clean design, to be cleaned without any auxiliary tools, no parts dismantling required
    • Can be driven on four heavy-load steering rollers and rotated 360°, with parking brake and height adjustment

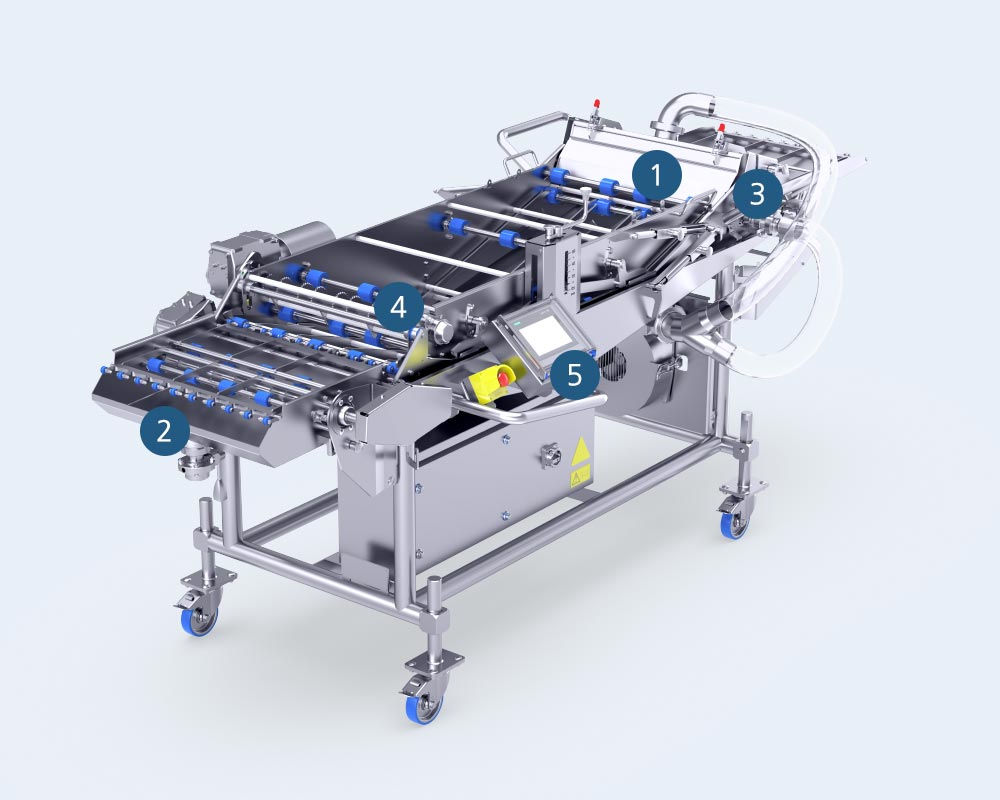

    Our Dipper

    1: Air knife
    removes excess materials from the top and bottom of products through an adjustable blower system with additionally integrated material return system.

    2: Outlet openings
    conveniently empty and clean the equipment tray.

    3: Pivotable outlet belt
    optimally transfers the product to downstream equipment.

    Optional

    4: Double-wall design
    makes it possible to inject a coolant to cool the coating material through a double-wall design.

    5: PLC control
    controls the plant in a smart and user-friendly way through a touch panel with functions like recipe management, etc.

    APM

    Even in front of and behind our dipper, you can count on our reliable technology. Our conveyor technology ensures optimal line integration and convenient filling. From different conveyor belts for all requirements to spiral conveyors and lifting and tilting devices to special solutions made just for you, we’ve got the right accessories for your food processing machines.
